5-36VDC Single Colour RF & Push-Dim LED Controller

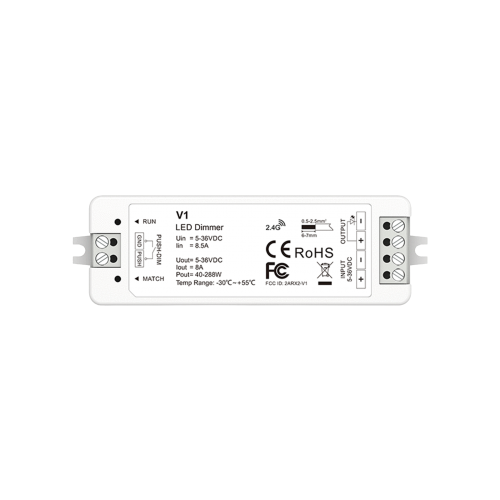

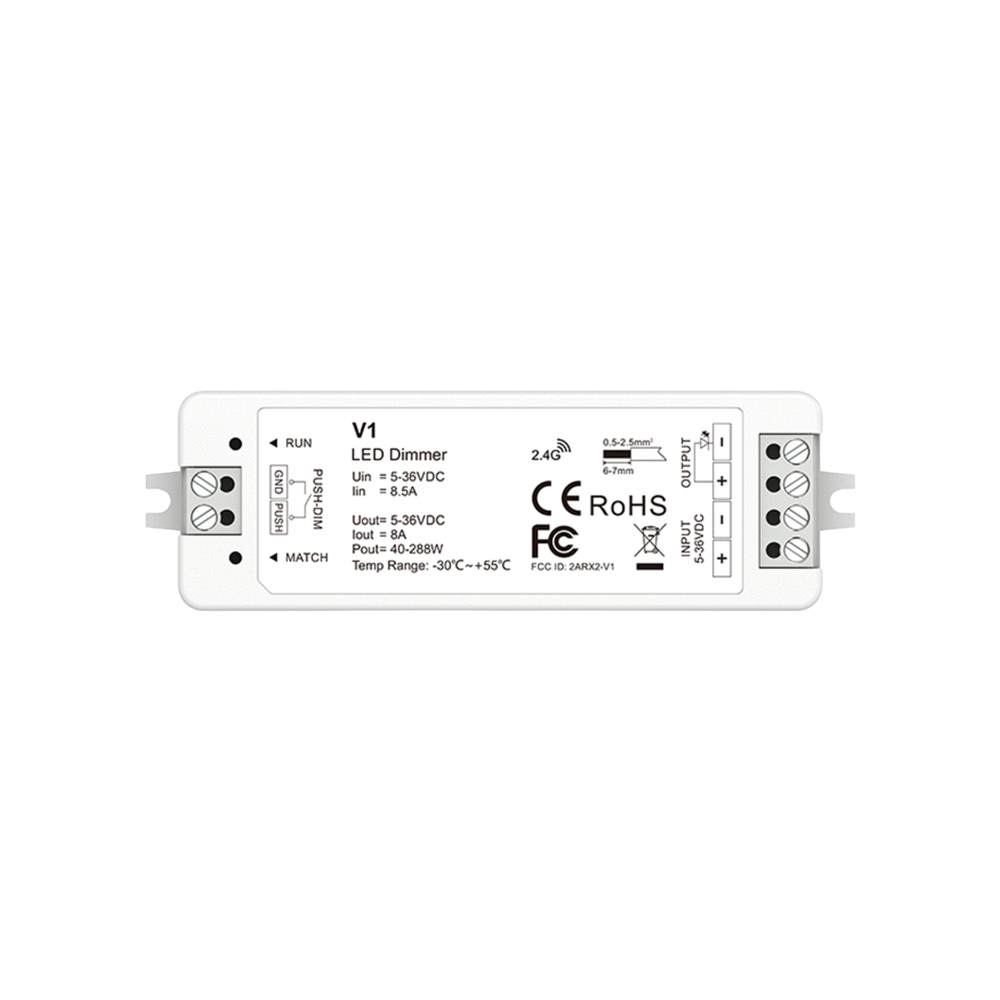

The PowerLed PL-V1 is a single-channel constant voltage LED controller designed for dimming compatible single colour LED lighting from 5–36VDC. It provides smooth 0–100% dimming with 4096 levels and a logarithmic dimming curve, while control can be provided by a compatible 2.4GHz RF remote or a conventional momentary wall switch through the integrated Push-Dim input. Rated at up to 8A output, the PL-V1 supports loads up to 40W at 5V, 96W at 12V, 192W at 24V and 288W at 36V. Multiple controllers can be synchronised, while the auto-transmitting function can relay the RF control signal to another controller over distances of up to 30m in open space. Adjustable 0.5 or 3-second light on/off fade times provide a smoother transition, and built-in reverse-polarity, overheat, overload and short-circuit protection support reliable operation. The compact IP20 controller measures approximately 111.4 × 33 × 18mm and carries a five-year warranty.
